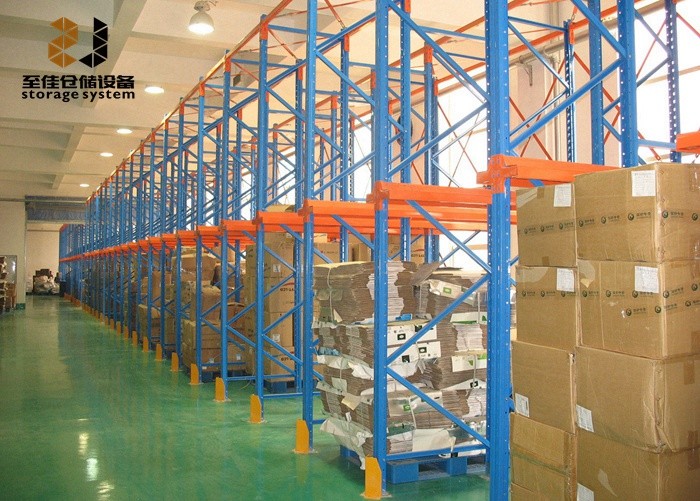

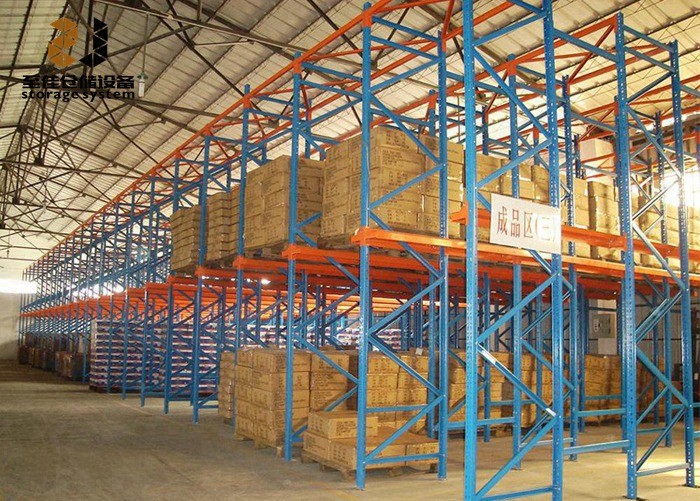

Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack

Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack
Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack

Large Image :  Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack

Product Details:
Model Number: W-DR2017523
Payment & Shipping Terms:
Minimum Order Quantity: 20 Sets
Price: Negotiation
Packaging Details: Standard export carton with bubble film
Delivery Time: 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3500 Ton/Tons per Month
Detailed Product Description
Certification: ISO90001/ISO14001 Product Name: Speed Rack Pallet Rack
Material: High Quality Cold Rolled Steel Weight Capacity: 500-4000kg/pallet
Store Layer: 1 To 7 Layers Per Bay Structure: Assemble
Size: Customzied Warranty: Warranty 5 Years
High Light:

drive in racking system

,

cold storage racking system

Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack



Description:

1. Drive in racking has a wonderful looks and scientific structures.
2. The upright is made of the cold steel sheet, which ID bent and rolled, there are two straight line of tear drop hole with 50mm between two holes. So the beam can be adjusted every 50mm.
3. The beam is "P" shape beam, and the height is matched with the shelf panels. The shelf panels are made of the cold roll steel according to the requires.
4. It is convenient to assemble or disassemble and it is widely used in supermarket, warehouse and other public fields.



Zhijia-drive in layout plan.pdf

Freezing Room B,D Drive In Rack-ZJ.pdf

Specification:



Product name

Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack

Features

Material:high quality cold rolled steel

Weight Capacity:500-4000kg/pallet

store layer:1 to 7 layers per bay

Structure:Assemble

Finish:Powder Coating / galvanization

Technique:Cold Rolled

Size:Customzied

Beam size:80/100/120/140/160/180/200*45*1.5-3.0

Spare Parts:As your requirement

Color:blue/orange/whiate/grey/black

Zhijia Service

Solution:Available for free

ODM&OEM:Available

Certification:ISO90001/ISO14001

Warranty:warranty 5 years

Business Type:Manufacturer

Advantage:Factory price

Response time:30 mins



Specifications of Upright
Item Width(mm) Depth(mm) Thickness(mm) Loading Capacity(kg)
1 85 67 1.6 7000
2 85 67 1.8 8500
3 85 67 2 10000
4 85 67 2.3 12500
5 100 67 1.8 10500
6 100 67 2 12000
7 100 67 2.3 13800
8 100 95 2 12000
9 100 95 2.3 14500
10 100 95 2.5 16000
11 100 95 2.75 18000
12 100 95 3 20000
13 120 95 2.5 17000
14 120 95 2.75 19000
15 120 95 3 21000



Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack 0Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack 1Cold Rolled Steel Powder Coating Easy Assemble Speed Rack Pallet Rack 2



Frames:Product Details



Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.


Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.

Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.

Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
