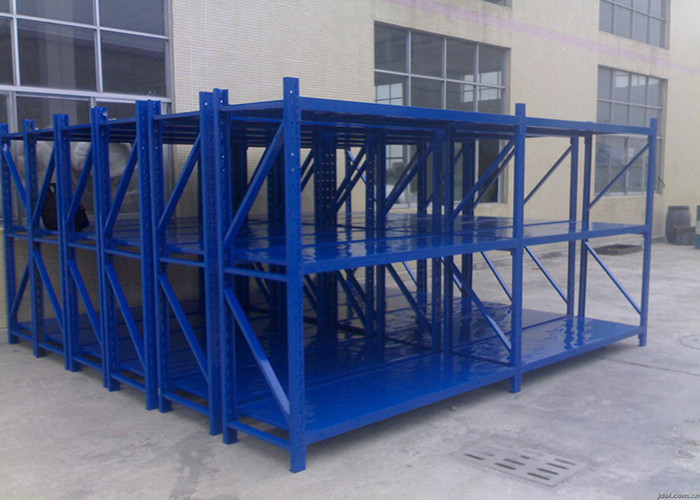

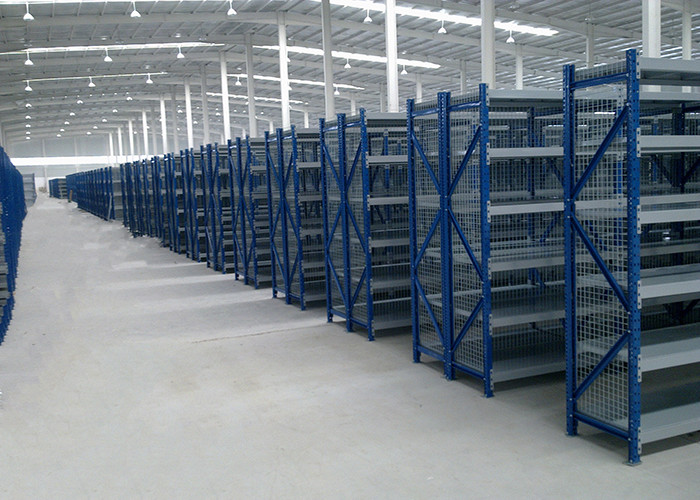

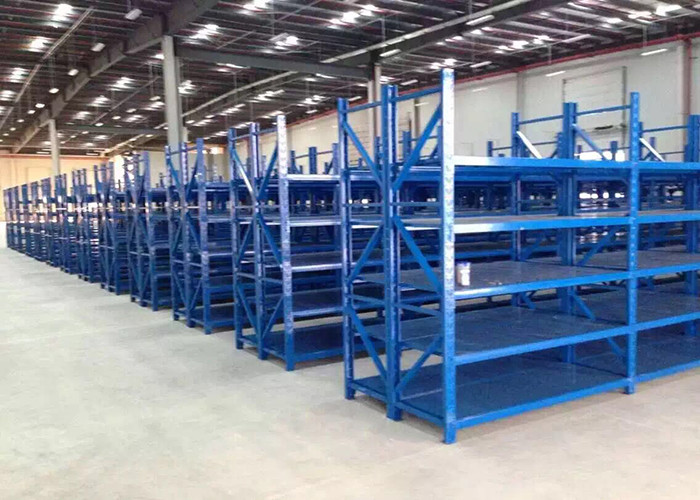

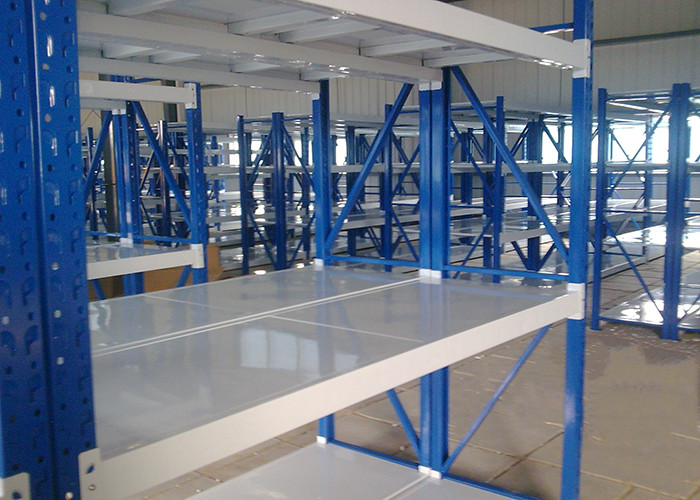

Industrial Light Duty Storage Rack System Powder Coating Finish 100kg-120kg/layer

Industrial Light Duty Storage Rack System Powder Coating Finish 100kg-120kg/layer
Industrial Light Duty Storage Rack System Powder Coating Finish 100kg-120kg/layer Industrial Light Duty Storage Rack System Powder Coating Finish 100kg-120kg/layer Industrial Light Duty Storage Rack System Powder Coating Finish 100kg-120kg/layer Industrial Light Duty Storage Rack System Powder Coating Finish 100kg-120kg/layer

Large Image :  Industrial Light Duty Storage Rack System Powder Coating Finish 100kg-120kg/layer

Product Details:
Certification: ISO9001/14001
Model Number: W-LD2017522-11
Payment & Shipping Terms:
Minimum Order Quantity: 20 Sets
Price: Negotiation
Packaging Details: Standard export carton with bubble film
Delivery Time: 15-30 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 6000 Tons per Month
Detailed Product Description
Material: Steel, SS400 A36 Q235 Etc Usage: Warehouse Storage System
Style: Adjustable Shelf Height Weight Capacity: 100kg-120kg/layer
Feature: Corrosion Protection Color: Different Colors Available
Type: Multi-Level Technique: Cold Rolled
High Light:

Industrial Light Duty Storage Rack

,

Light Duty Storage Rack System

,

Light Duty Industrial Racking System

Light Duty Storage Rack pallet racking warehouse storage system shelves racks



Description:



The light duty racking is easy to be assembled or disassembled, nice surface treatment, usually being used in warehouse or supermarket for storage or display. Loading capacity 50-150 kg per layer, multi-combination, powder coated or Galvanized.



Features:

1. All-purpose slot angle steel upright.

2. Cut-in composite usually with steel panel.

3. Simple and quick assembled and dismantled

4. Height of each level can be adjusted freely by pitch of 50mm

5. Loading and unloading by hand

6. Loading capacity 100-200kg per level

7. Powder coating finish and various color be available

Industrial Light Duty Storage Rack System Powder Coating Finish 100kg-120kg/layer 0

Supply Ability & Trading Terms:

Terms of payment T/T,30% deposit in advance, the balance before the shipment, or negotiation
Trade terms EXW, FOB, CIF, C&F
MOQ 100 PCS OR 30 PCS
Production Ability 10000 units/month
Production Leadtime It depends, normally 20-30 days after receiving the deposit
Packing

KD structure, knocked down,

PE foam inside, multi-layer of carton outside, or neutral packing



SPECIFICATIONS
Dimension: L: 1200/1500/2000/2500(mm)
W: 600/800/900/1000/1100/1200(mm)
H: 2000/2500/3000/4000/5000(mm)
Specail sizes also avaiable to specific storage needs.



Main Parts Specs(mm):

Upright section: 2000*500*25*50*0.57
Beams section: 1400*30*50*0.45
Layer: 480*690*0.25
Material: High-quality steel,Q235 industrial storage racks
Finish: High-quality Powder Coating Finish. industrial storage racks
Quick Delivery Within 10 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.


Manufacturing process
Raw materials(Wisco)→Cold rolling→Fixed length→Punching(Welding)→Rectify→Surface powder coating→Packing→Finished product



Surface treatment:
The process flow:Raw material→Unoil→Rust removal→Pre-dips→Phosphating→Drying→Powder coating→Curing→Packing

1. Shelf surface treatment using electrostatic spray process of epoxy, powder coating 60~80 microns

2. Electrostatic powder spraying adhesion level 0 in GB92865-88 standard requirement.

3. Hardness(abrasion resistance) as 100 times more than ordinary lacquer, achieve GB6739 the 2 h - 86 standard requirements, namely the 2 h pencil test without scratches.

4.Corrosion resistance (hydroelectric acid) GB1771-91 more than 500 hours.



Accurate color configuration and material requirements:


1. Column: Color RAL5010——Blue;Material Q235,Wisco.
2. Beam:Color RAL2004——Orange;Material Q235,Wisco.



Packaging & Shipping


Standard Export Seaworthy Packing Knockdown packing with plastic air bubble film package, save transportation cost, safe for long distance transportation.



Required information from customers for quick quote:

1. the AUTOCAD drawing or draft drawing of warehouse or racking.

2. the size of the warehous, length, height, and width.

3. how many layers of the racking?

4. your pallet size.

5. max weight of pallet with cargo on.

6. special color requirement.



why choose us

1. We are the original manfacture with more than10 years professional experience in racks & shelves industry.

2. We have professional design team, we can design what you want according to your requirements.

3. We mainly deal in various kinds of storage equipment, including warehouse shelving,metal dispaly rack, wire rack, supermarket shelf, logistics trolley, ladder truck, iron chuck plate, storage cage, materials rack, stacking shelf, tool cabinet, (vehicle) locker, roller, and so on.

4. We enjoy a high reputation for excellent quality and reasonable price all over the world, our products are popular among America, Europe, Australia, Canada, India, South Africa, Japan, ect.

5. We are direct manufacturer, please feel free to contact us.

6. More than two hundred set advanced technology machines.

7. We promise to provide high quality products and the best services for you!
