Maximum 4500kg Per Level Power Coated Corrosion Protection Pallet Stacking
Description:

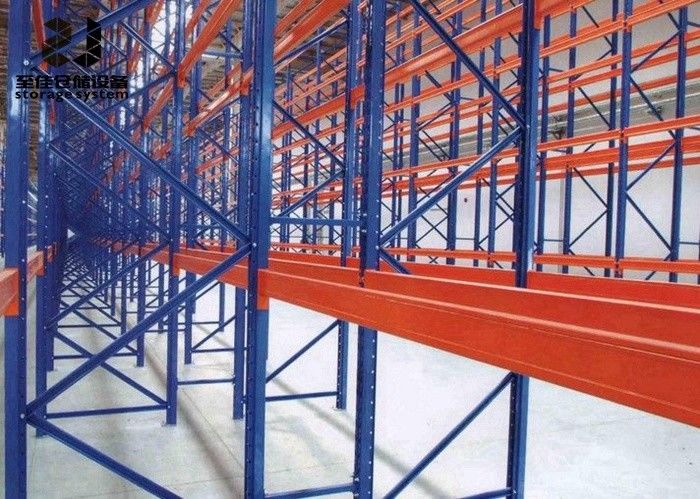

Double Deep heavy duty pallet racking for warehouse is similar to selective racking; but pallets are now stored two rows deep instead of one. This type of racking therefore requires specialised pallet handling equipment using either a specialised forklift or a standard unit a with double deep handling attachment.
The most common forklift used for double-deep handing is a reach truck. One key disadvantage with reach trucks is that they require a counter balance for loading and unloading the pallet onto trucks, which can double capital investment requirements for your pallet handling equipment.
Another Option is articulated forklifts which are able to work in double deep narrow aisles while still doing the job of a counter balance.
Heavy Duty Rack Structure Plan-Zhijia.pdf
heavy duty rack Layout 2700-800-5550.pdf
Specification:
| Product name |
Maximum 4500kg Per Level Power Coated Corrosion Protection Pallet Stacking
|
| Features |
Material:Steel Q235/Q345, Steel Q235/245
Capacity:1000-4500kg/pallet
Layer:Multi-Level
Structure:Assemble or welded
Surface treatment:Power Coated,Corrosion Protection
Size:Customized Size
height:2000-11000 mm
Option Accessories:panels & support bars
Color:RAL
|
| Zhijia Service |
Solution:Available for free
ODM&OEM:Available
Certification:ISO90001/ISO14001
Warranty:warranty 5 years
Business Type:Manufacturer
Advantage:Factory price
Response time:30 mins
|
Production flow
raw material→automatic punching holes→ cold rolled and shaping→welding→ lead free powder painting.
black semi-finished products→remove oil→ chemical remove rust→ washing→ phosphating→washing→lead free expoxy powder painting→200°C high temperature solidification→final inspection→packing
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory.We are specilize in all kinds of warehouse storage rack.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Dong Guan City, Chian where is only 1 hous driving away from Hong Kong. You are warmly welcome to visit us whenever you are available!
3. Q: What is the raw material of your products?
A: As general, the raw material of steel code is Q235.Other steel is also available to clients’ requirements.
4. Q: What is the term of payment?
A: As general, 30% payment in advance by T/T and balance before shipping.
5. Q: What is delivery times?
A: In general, within 15 days.It also depends on the order quantity and racking types.
6. Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
7. Q: Are samples available?
A: Yes. Short sections of samples could be provided, they are free of charge, but international courier costs to be borne by clients.
8. Q: Is Galvanised Finish available for pallet racks?
A: Yes. Pallet raking posts and bracings are available with galvanized finish.
9. Q: How could you guarantee the products quality?
A: We have professional engineer to check what size should be used to guarantee your load weight request.
Before shipping, our quality control also would carefully check whether the quality is
approved.
10. Q: How could I install the racks?
A: We would provide detail install drawing to teach you how to install the racks. If needed, we also could
provide free engineer to teach you installation. But related cost( Flight, living and eating) should be in your
charge.
