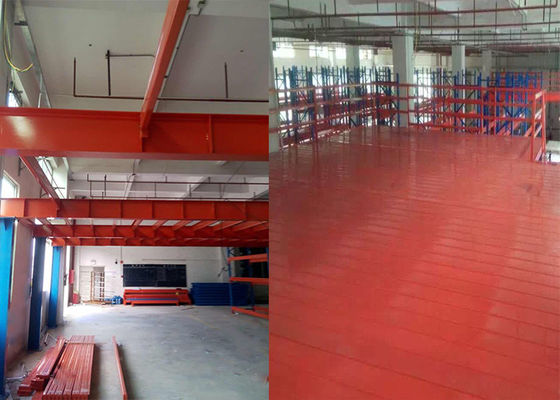

Long Span Steel Structure Industrial Mezzanine Floors for Warehouse Storage
Description:
Steel platform is made up of post, main beam, sub-beam, floors, staircase, and frame protector. It can be assembled and no on-site welding. Different design can be provided in line with the loading capacity by selecting different material specification. It is of high intense and widely utilized.
1. With composite racking structure, patented light-steel floor panel structure
2. Floor panel with large load capacity, low cost, quick construction
3. Can be designed into one layer or multi-layers according to actual situation
4. Ensures fullest space utilization
5. Provides direct access to all pallets
6. Surface: powder coated or galvanized and color optional
7. Can be designed according to clients' requirements
|
1. Features of mezzanine floor:
|
•space are devided into above and under.
•saves the major expense and headache of relocation.
•can be altered, extended and if necessary rebuilt as your circumstances change.
|
|
2. Load Capacity & Dimensions:
|
•Loading capacity: 200-1000 kgs /square meter.
•Height: 2,000-8,000mm
•Specail sizes also avaiable to specific storage needs.
|
|
4. Material:
|
•High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China.
|
|
5. Finish:
|
•High-quality Powder Coating Finish.
|
|
6. Quick Delivery.
|
•Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery. |
|
7. CE certified.
|
•rack pallets, CE certified, TUV certified
|
|
Product Name
|
Steel Structure Industrial Mezzanine Floors Platform for Warehouse Storage
|
|
Material
|
steel Q235, or other type steel according to weather, temperature or moisture requirement
|
|
Finish & Color
|
powder coating finish, color to customer option according to RAL color
|
|
Box beam
|
K80x50, K90x50, K100x50, K110x50, K120x50, K140x50, K150x50, K160x50,
|
|
Step beam
|
P60x50, P80x50, P100X50 etc
|
|
installation
|
upright frame and beam structure, upright and bracing connected with bolts & nuts
|
|
Usage
|
for industrial and commercial warehouse and shop storage.
|
