Dongguan Zhijia Storage Equipment Co.,Ltd.
Home ProductsHeavy Duty Storage Rack

Adjustable steel heavy duty pallet racking storage system for warehouse

China Dongguan Zhijia Storage Equipment Co.,Ltd. certification
China Dongguan Zhijia Storage Equipment Co.,Ltd. certification
Thank you for you mail. We are seeking approval from management.Thank you for your cooperation.

—— Howard

Your products use well.

—— Helen

The drawing is accurate, please provide quotation.

—— Michael

I'm Online Chat Now

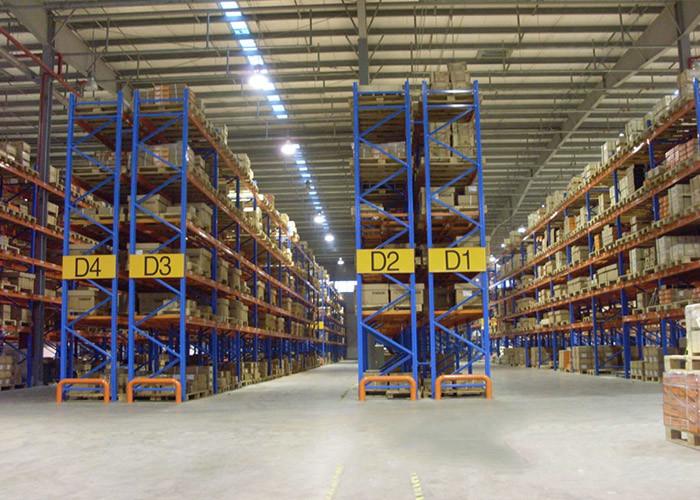

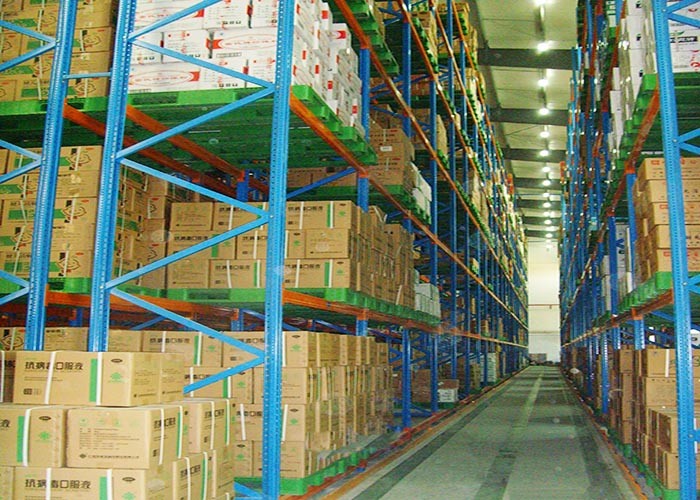

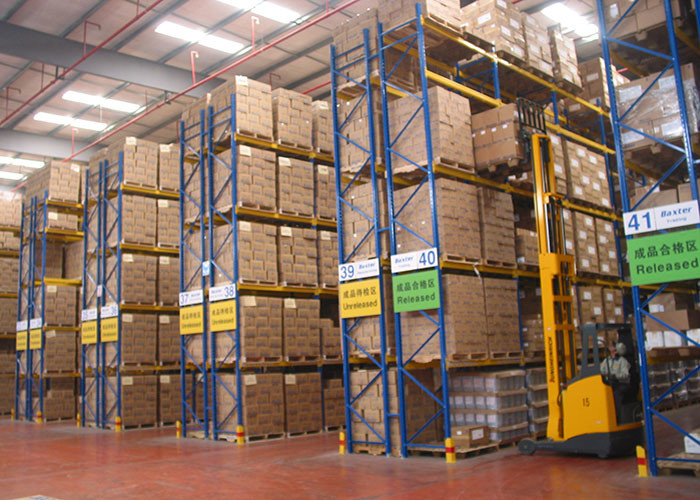

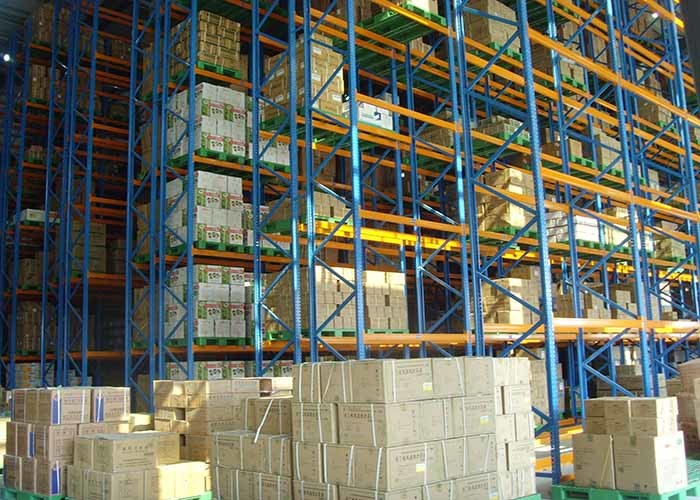

Adjustable steel heavy duty pallet racking storage system for warehouse

Adjustable steel heavy duty pallet racking storage system for warehouse
Adjustable steel heavy duty pallet racking storage system for warehouse Adjustable steel heavy duty pallet racking storage system for warehouse Adjustable steel heavy duty pallet racking storage system for warehouse Adjustable steel heavy duty pallet racking storage system for warehouse

Large Image :  Adjustable steel heavy duty pallet racking storage system for warehouse

Product Details:
Certification: ISO9001/14001
Model Number: W-HD2017525
Payment & Shipping Terms:
Minimum Order Quantity: 20 Sets
Price: Negotiation
Packaging Details: Standard export seaworthy packing
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 6000 Tons per Month
Detailed Product Description
Item: Heavy Duty Metal Storage Racks Finish: Corrosion Protection
Material: Steel Q235/Q345, Steel Q235/245 Structure: Assemble Or Welded
Type: Warehouse Racking, Store Shelf Capacity: Load Up To 4 Tons Per Level
Layer: Multi-Level Usage: Warehouse Storage System
High Light:

heavy duty industrial shelving

,

industrial storage racks heavy duty

Adjustable steel heavy duty pallet racking storage system for warehouse


Product Details

Heavy Duty Rack Structure Plan-Zhijia.pdf



Material
Steel Q235
Loading Capacity
Customized and up to 4,000 Kg UDL/level
Racking Height
Customized and up to 18,000 mm
Racking Depth
400-2000 mm
Beam Length
Customized and up to 3,500 mm
Racking Finish
Frames (Powder Coated or Pre-galvanized) + Bracings (Powder Coated or Pre-galvanized) + Beams (Powder coated)
Packing Details
Standard export seaworthy packing

Upright:
Standard section sizes: 90*65*1.5-2.0, 100*70*1.5-3.0, 120*70*2.0-3.0mm.
Boxed Beam:
Standard section sizes: 80/100/120/140/160/180/200*45*1.5-3.0mm.
Small Components include:
Post Baseplate, Bracing, Plastic Block for assembly of horizontal bracing, Anchors, Bolts & Nuts, and Safety Pin.
Accessories to Pallet Racking Systems:
Row Spacer connecting Upright Frames for stronger structure, U-shape Post Protector, L-shape Post Protector, Frame Barrier,

Pallet Supporting Bar, Steel Pallets, Plastic Pallet, Special custom-made Pallets, Cage, Mesh Container, Mesh Deck, etc.
Adjustable heavy duty steel shelving uprights beam shelf


Adjustable steel heavy duty pallet racking storage system for warehouse 1

Features:

1. Fully utilizes vertical space; suitable for storing all kinds of goods;
2. Standard sizes to fit most racks;
3. The bearing capacity of each shelf may reach 4, 000kg;
4. Durable finish, clean appearance, fire resistant;
5. Allows you to easily store pallets;
6. Special attachments and decking can be used to make the racks capable of supporting other types of unit     loads besides pallets (coils, drums, skids);
7. Engineered for maximum strength and value.


Production flow

raw material→automatic punching holes→ cold rolled and shaping→welding→ lead free powder painting.

black semi-finished products→remove oil→ chemical remove rust→ washing→ phosphating→washing→lead free expoxy powder painting→200°C high temperature solidification→final inspection→packing





Adjustable steel heavy duty pallet racking storage system for warehouse 2



Structure plan2700-800-5550.pdf
FAQ:

1. Q: Are you a factory or trading company?
A: We are a factory.We are specilize in all kinds of warehouse storage rack.

2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Dong Guan City, Chian where is only 1 hous driving away from Hong Kong. You are warmly welcome to visit us whenever you are available!

3. Q: What is the raw material of your products?
A: As general, the raw material of steel code is Q235.Other steel is also available to clients’ requirements.

4. Q: What is the term of payment?
A: As general, 30% payment in advance by T/T and balance before shipping.

5. Q: What is delivery times?
A: In general, within 15 days.It also depends on the order quantity and racking types.

6. Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.

7. Q: Are samples available?
A: Yes. Short sections of samples could be provided, they are free of charge, but international courier costs to be borne by clients.

8. Q: Is Galvanised Finish available for pallet racks?
A: Yes. Pallet raking posts and bracings are available with galvanized finish.

9. Q: How could you guarantee the products quality?
A: We have professional engineer to check what size should be used to guarantee your load weight request.
Before shipping, our quality control also would carefully check whether the quality is
approved.

10. Q: How could I install the racks?
A: We would provide detail install drawing to teach you how to install the racks. If needed, we also could
provide free engineer to teach you installation. But related cost( Flight, living and eating) should be in your
charge.
