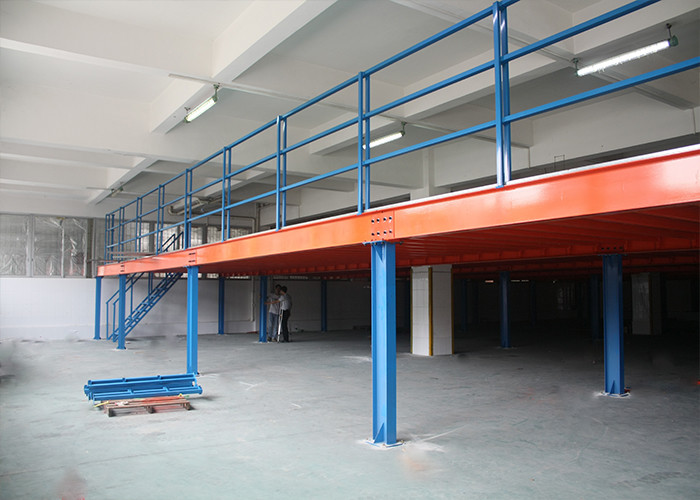

Long Span Industrial Mezzanine Floors Steel Structure for Warehouse Storage

Long Span Industrial Mezzanine Floors Steel Structure for Warehouse Storage
Long Span Industrial Mezzanine Floors Steel Structure for Warehouse Storage Long Span Industrial Mezzanine Floors Steel Structure for Warehouse Storage Long Span Industrial Mezzanine Floors Steel Structure for Warehouse Storage Long Span Industrial Mezzanine Floors Steel Structure for Warehouse Storage

Large Image :  Long Span Industrial Mezzanine Floors Steel Structure for Warehouse Storage

Product Details:
Certification: ISO9001/14001
Model Number: W-MF2017524
Payment & Shipping Terms:
Minimum Order Quantity: 50m²
Price: Negotiation
Packaging Details: Standard export carton with bubble film
Delivery Time: 15-30 Days
Payment Terms: T/T, L/C, Western Union
Detailed Product Description
Material: Steel Q235/Q345, Steel Q235/245 Name: Mezzanine Warehouse System
Size: Customzied Structure: Assemble Or Welded
Weight Capacity: 1000kg/m² Feature: Safety, Flexible, Economical, Durable
Characteristic: Stable & Artistic&save Space
High Light:

warehouse mezzanine floors

,

pallet rack supported mezzanine

Long Span Steel Structure Industrial Mezzanine Floors for Warehouse Storage



Description:



Steel platform is made up of post, main beam, sub-beam, floors, staircase, and frame protector. It can be assembled and no on-site welding. Different design can be provided in line with the loading capacity by selecting different material specification. It is of high intense and widely utilized.



1. With composite racking structure, patented light-steel floor panel structure
2. Floor panel with large load capacity, low cost, quick construction
3. Can be designed into one layer or multi-layers according to actual situation
4. Ensures fullest space utilization
5. Provides direct access to all pallets
6. Surface: powder coated or galvanized and color optional
7. Can be designed according to clients' requirements



1. Features of mezzanine floor:

•space are devided into above and under.
•saves the major expense and headache of relocation.
•can be altered, extended and if necessary rebuilt as your circumstances change.
2. Load Capacity & Dimensions:

•Loading capacity: 200-1000 kgs /square meter.
•Height: 2,000-8,000mm
•Specail sizes also avaiable to specific storage needs.
4. Material:

•High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China.
5. Finish:

•High-quality Powder Coating Finish.
6. Quick Delivery.

•Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.
7. CE certified.

•rack pallets, CE certified, TUV certified



Product Name
Steel Structure Industrial Mezzanine Floors Platform for Warehouse Storage
Material
steel Q235, or other type steel according to weather, temperature or moisture requirement
Finish & Color
powder coating finish, color to customer option according to RAL color
Box beam
K80x50, K90x50, K100x50, K110x50, K120x50, K140x50, K150x50, K160x50,
Step beam
P60x50, P80x50, P100X50 etc
installation
upright frame and beam structure, upright and bracing connected with bolts & nuts
Usage
for industrial and commercial warehouse and shop storage.

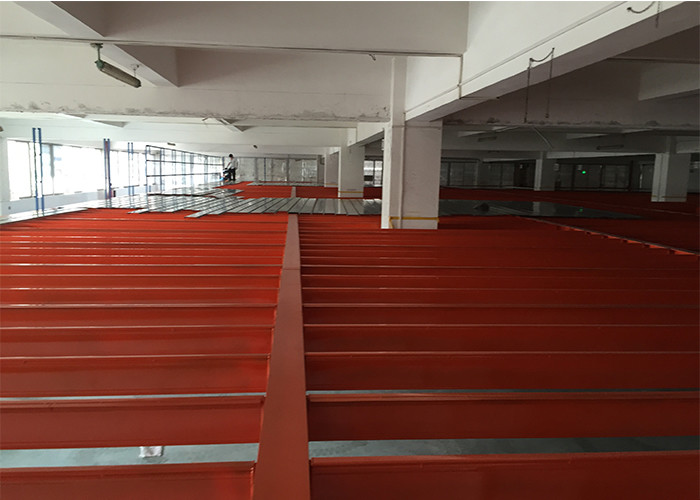

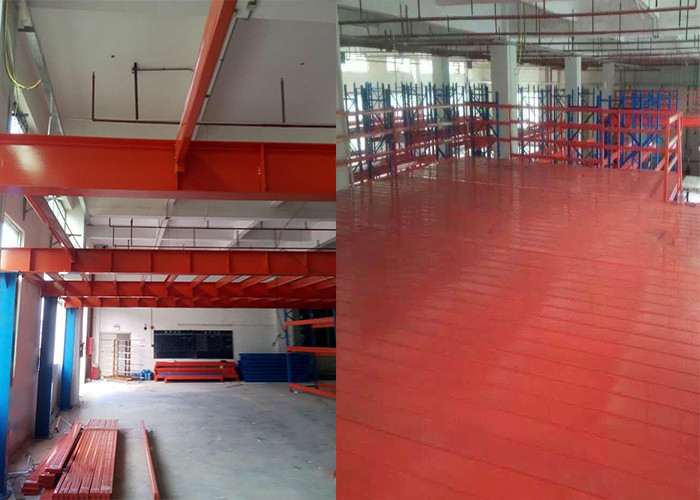

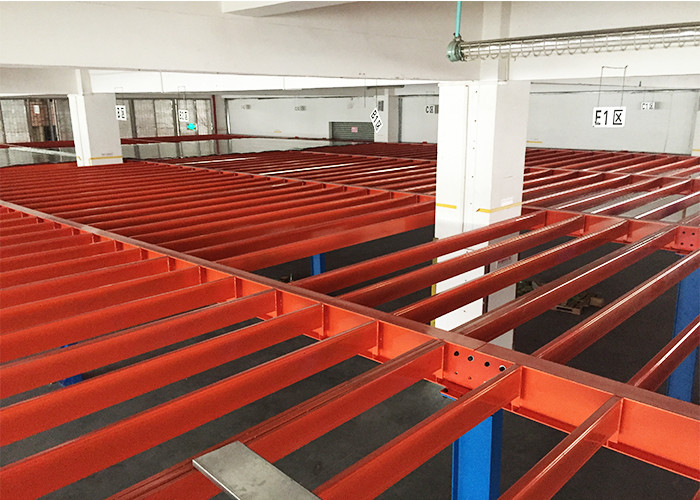

Long Span Industrial Mezzanine Floors Steel Structure for Warehouse Storage 0Long Span Industrial Mezzanine Floors Steel Structure for Warehouse Storage 1
